Question 1

What is BESS revenue stacking?

Accepted Answer

Battery storage revenue stacking is the practice of generating income from multiple electricity markets simultaneously with a single battery asset. A BESS in Germany can combine FCR, aFRR, Day-Ahead arbitrage, and Intraday arbitrage in one project, with each stream earning revenue from the same physical asset at different times or with different portions of its available capacity. In practice, a project might reserve part of its capacity for a daily FCR auction while dispatching the remainder into arbitrage around price spreads, then reallocate hour by hour as prices and system needs shift. Revenue stacking is what makes most European BESS projects financially viable, since no single revenue stream alone reliably clears the cost of capital. Modelling it correctly requires hour-by-hour dispatch optimization across all products simultaneously rather than a fixed capacity split, because the optimal allocation changes constantly with market volatility.

Question 2

Which revenue streams are available for battery storage in Germany?

Accepted Answer

The main revenue streams for BESS in Germany are FCR (Frequency Containment Reserve), aFRR (automatic Frequency Restoration Reserve), Day-Ahead spot arbitrage, and Intraday arbitrage. FCR and aFRR are tendered through daily auctions on the regelleistung.net platform in 4-hour products, while Day-Ahead and Intraday volumes trade on EPEX SPOT in 15-minute products, with Day-Ahead moving to 15-minute granularity on 1 October 2025 after previously settling hourly. Each market rewards a different kind of flexibility: FCR pays for standing capacity, aFRR pays for capacity plus activation, and the spot markets pay for correctly timed charging and discharging around price spreads. Co-located projects with solar or wind can additionally monetize EEG direct marketing and curtailed generation that would otherwise be lost, giving a hybrid asset revenue access well beyond what either the generator or the battery could earn on its own.

Question 3

What is the difference between FCR and aFRR?

Accepted Answer

FCR pays a capacity price for symmetric frequency response and is traded in daily auctions as 4-hour products, making revenue relatively predictable and attractive for project finance. aFRR is also traded in 4-hour products but pays both a capacity price and an energy activation price, and carries a stricter technical requirement - full power must be deliverable within 5 minutes of being called - which offers higher revenue potential in exchange for greater operational and revenue uncertainty. Both products are procured on the same regelleistung.net platform and draw on the same underlying battery capacity, so a project cannot simply commit to both in full simultaneously. Most bankable BESS revenue models therefore optimize across FCR and aFRR together rather than treating them as independent income streams, continuously re-evaluating which combination of commitments maximizes expected revenue as prequalification volumes and price signals change.

Question 4

What revenue can a BESS project earn in Germany?

Accepted Answer

A 10 MW / 20 MWh BESS in Germany currently generates approximately €150,000 to €220,000 per MW per year across a combined FCR, aFRR, and arbitrage stack, depending on configuration, dispatch strategy, and prevailing market conditions. Revenue has compressed significantly from the 2021 to 2022 peaks as installed BESS capacity has grown faster than the volume of ancillary services procured, meaning more assets are now competing for essentially the same FCR and aFRR demand. Duration matters too: 2-hour and 4-hour configurations are exposed to arbitrage and ancillary revenue differently, and the optimal split between power and energy capacity shifts as the revenue mix evolves. The Catalyst BESS Economics Index tracks current monthly benchmarks across standardized configurations so developers and financiers can see how these dynamics are actually playing out in the German market rather than relying on outdated assumptions.

Question 5

What is co-location for battery storage?

Accepted Answer

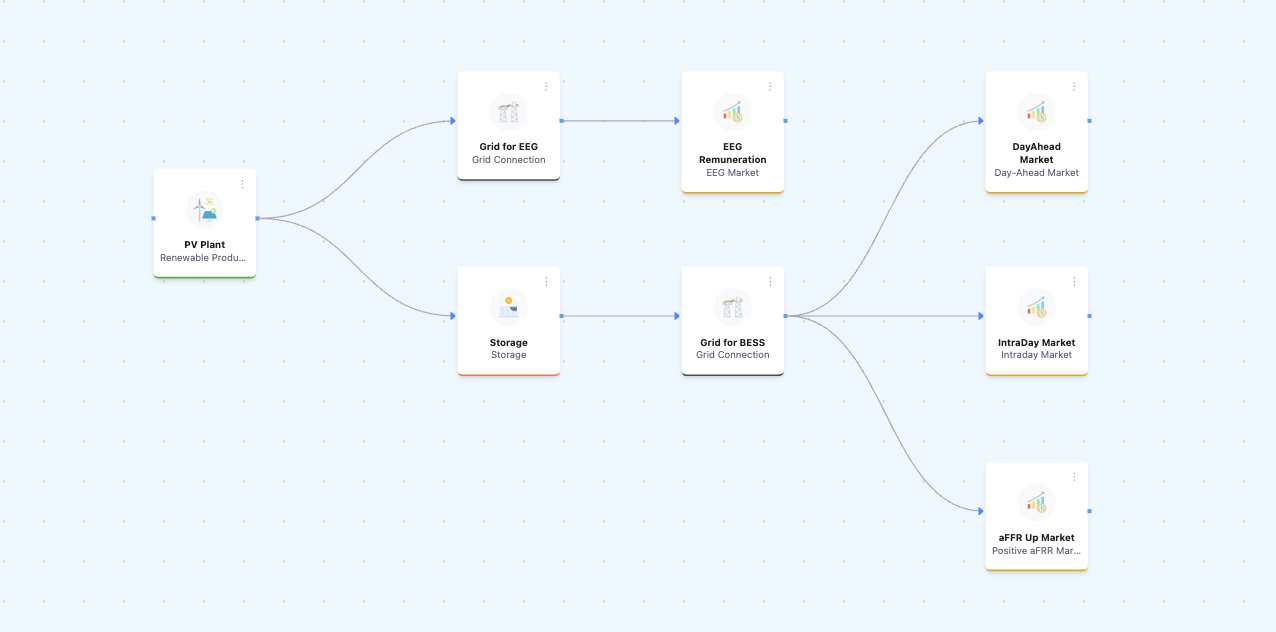

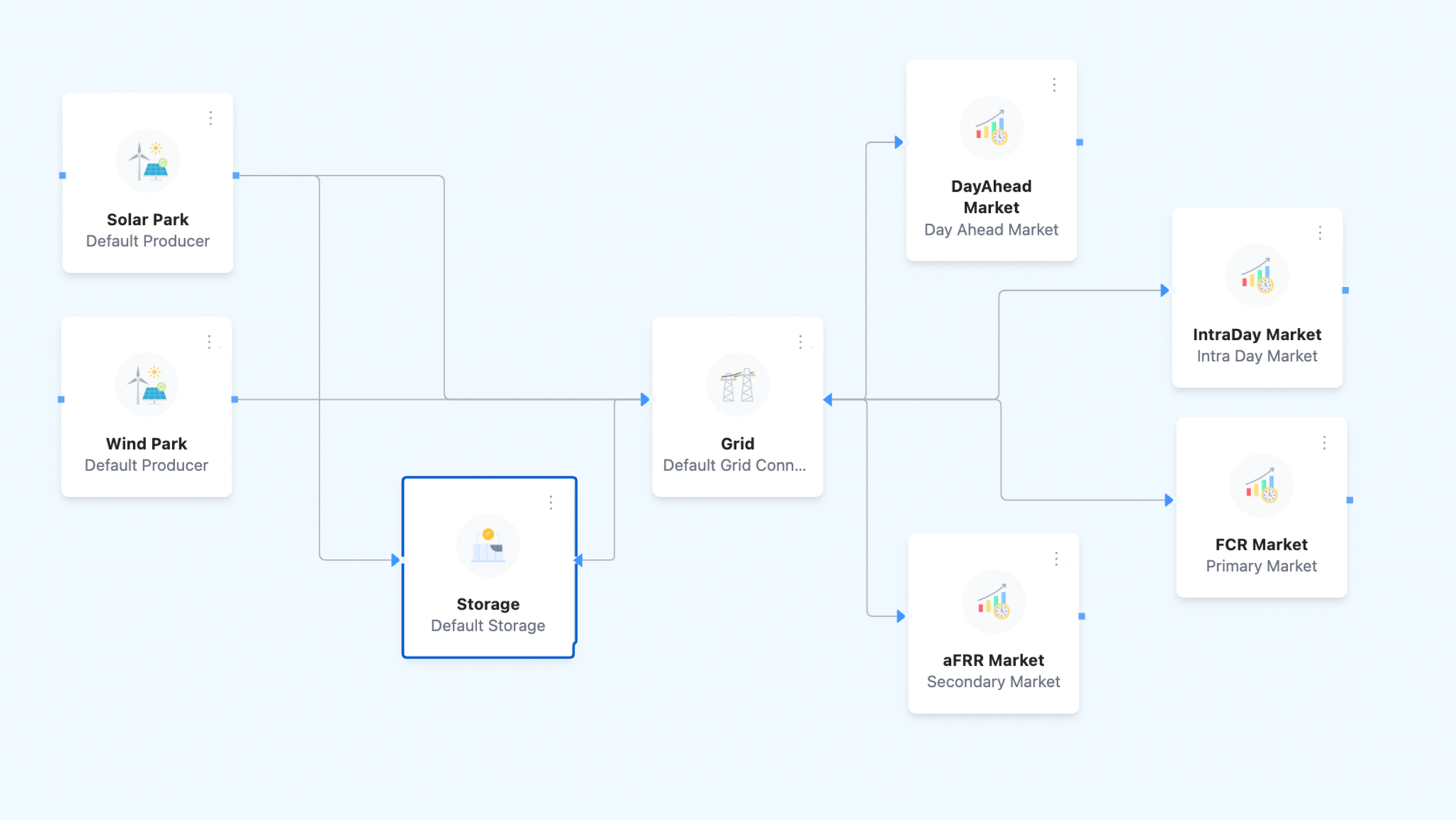

Co-location is the integration of a battery at the same grid connection point as a solar or wind plant, sharing a single grid connection instead of building two. The combined asset can optimize dispatch across generation, storage, and multiple market products at once, capturing electricity that would otherwise be curtailed when the grid connection or local demand cannot absorb full generator output, and storing it for later sale into higher-priced periods. Beyond arbitrage, a co-located battery can access EEG direct marketing revenue alongside ancillary services such as FCR and aFRR, effectively adding a new income stream to a generation asset without needing a separate grid connection or land parcel. Because the storage and generation components interact throughout the day, correctly modelling a co-located project requires simulating their combined dispatch rather than analyzing the generator and the battery as independent assets.

Question 6

What does a bankable BESS revenue model include?

Accepted Answer

A bankable BESS revenue model includes cell chemistry and degradation parameters specific to the chosen battery technology, market-specific revenue streams built on historical price data rather than flat averages, hour-by-hour dispatch optimization instead of fixed capacity allocation, and explicit modelling of regulatory constraints such as FCA prequalification rules, grid fees, and ramp-rate limits. It also requires scenario analysis across at least three market-price cases - typically a base, downside, and upside - so lenders and investors can see how sensitive returns are to assumptions rather than relying on a single point estimate. Increasingly, lenders require every output to be fully traceable back to its underlying assumption, so that a reviewer can see exactly which price series, degradation curve, or regulatory constraint drove a given revenue figure. Models that cannot demonstrate this traceability are a common reason financing due diligence stalls or is rejected outright.

Question 7

How do ramp-rate limits affect BESS revenues?

Accepted Answer

Ramp-rate limits restrict how quickly a battery can change its output power, typically defined in grid connection agreements as a percentage of rated power per minute, and they exist to protect local grid stability rather than to constrain the battery's economics directly. In Germany, limits around 10% per minute are common, and they reduce a project's ability to respond fully to short-lived price spikes in the Intraday market, since the battery cannot always ramp from standing by to full discharge within the window a price spike lasts. By contrast, aFRR itself carries a stricter requirement - full power within 5 minutes of activation - showing that ramp constraints vary significantly by market and connection agreement. Revenue models that ignore ramp-rate constraints systematically overestimate arbitrage revenue, sometimes by 15 to 25%, because they implicitly assume instantaneous power changes that the physical grid connection does not actually allow.

Question 8

What is the Catalyst BESS Economics Index?

Accepted Answer

The BESS Economics Index, published monthly by Catalyst by phelas, tracks realized and modelled revenue benchmarks for battery storage in Germany using standardized 2-hour and 4-hour configurations so that figures are comparable month to month and across projects of different sizes. It reports FCR, aFRR, and arbitrage revenue per MW per year, built from the same dispatch-optimization methodology used in Catalyst's project-level modelling rather than simplified averages, so the index reflects how an optimally dispatched asset would actually perform under real market conditions. Project developers use it to sanity-check early-stage assumptions before committing to a full feasibility study, investors use it to benchmark deal-level projections against the broader market, and financiers use it as an independent reference point when evaluating whether a borrower's revenue assumptions are in line with observed market economics rather than optimistic outliers.

Question 9

How is Catalyst different from a spreadsheet BESS model?

Accepted Answer

Spreadsheet models typically use fixed revenue allocation between markets and annual average market prices, both of which systematically misrepresent actual BESS revenue because real dispatch decisions are made hour by hour in response to price signals that vary far more than an annual average suggests. Catalyst instead runs hour-by-hour dispatch optimization across all revenue streams simultaneously, so the model captures exactly when the battery should charge, discharge, or hold capacity in reserve for FCR or aFRR at each point in time. It also enforces regulatory constraints explicitly, including FCA prequalification rules, ramp-rate limits, and state-of-charge management, rather than assuming they do not bind. Every output is logged and traceable back to the specific price series, degradation assumption, or regulatory rule that produced it, which is what distinguishes bankable documentation from a rough estimate - and what allows the result to withstand scrutiny from lenders and investment committees.

Question 10

What do lenders require for BESS project finance?

Accepted Answer

Lenders require a revenue model built on an auditable methodology with every assumption traceable back to its source, rather than a black-box output. They typically require P90 and P50 sensitivity analysis across the key variables that drive returns - market prices, battery degradation, and curtailment - so they can see downside risk explicitly rather than relying on a single base case. A base-case debt service coverage ratio (DSCR) above approximately 1.2x is a common threshold, alongside a clearly documented operations and maintenance structure and battery warranty terms that survive the debt tenor. Lenders also expect documentation showing that regulatory constraints are modeled correctly rather than assumed away. In practice, the single most common reason a BESS revenue model is rejected in due diligence is reliance on flat average market prices instead of an hour-by-hour optimized dispatch that reflects how the asset would actually be operated.

Prove Co-Location economics. Stop guessing.

Renewable project economics get complicated - we help you keep them profitable and transparent.

Find the configuration that makes your project viable.

Calculate revenues

Optimize sizing

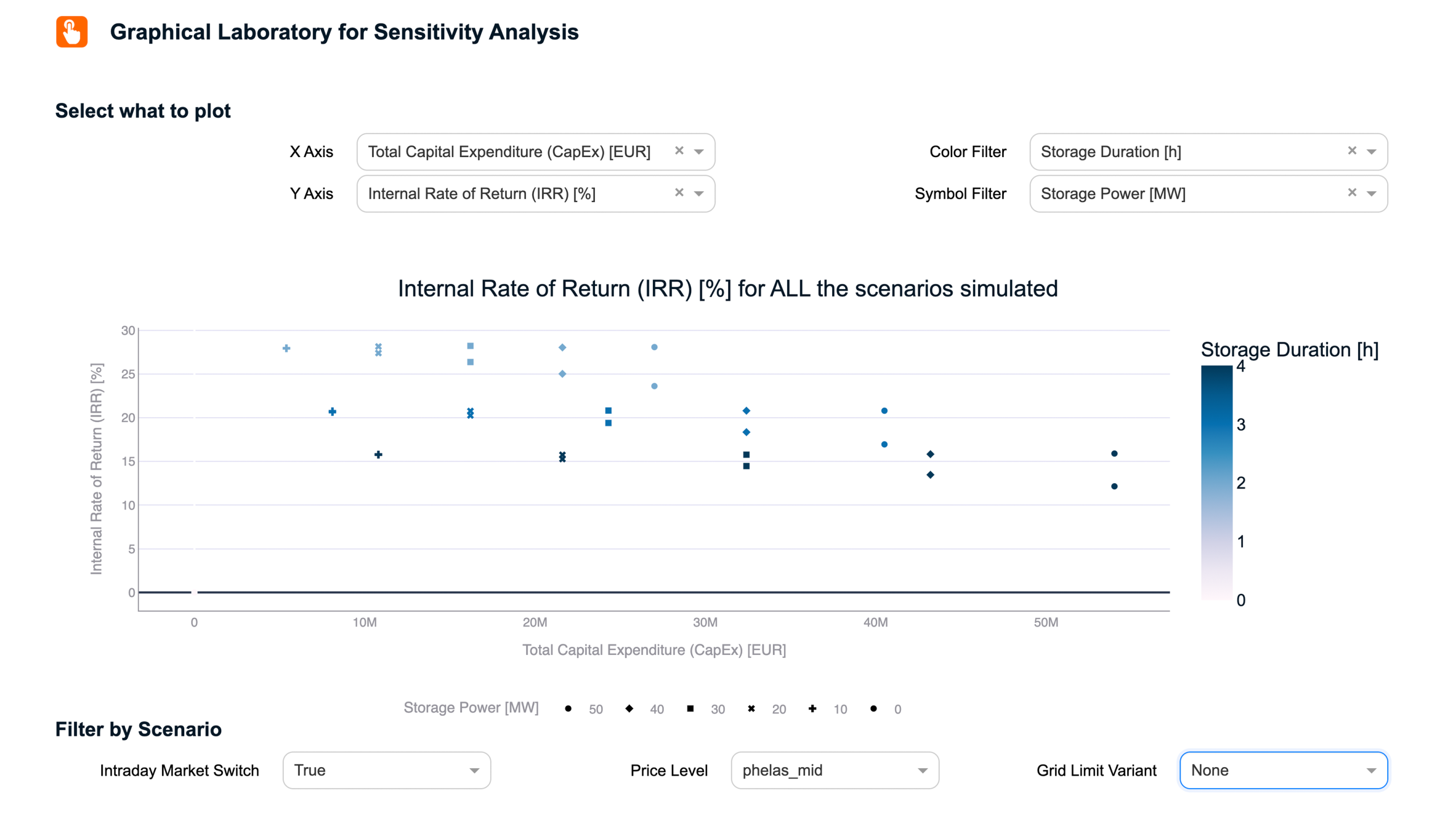

Understand sensitivities
